High-Voltage E-Bike Battery Systems: 48V to 86V Explained

"Ebike battery" is one of the most searched terms in the space, and also one of the least specific. A stock 48V battery and a high-performance 86V pack are both "ebike batteries," but they deliver wildly different amounts of speed, power, and range. If you're building or buying a high-power e-bike, understanding voltage is the single most useful thing you can learn before you spend money on a battery.

Why voltage matters more than amp-hours

Power (watts) is simply voltage multiplied by current (amps). To make the same amount of power, a higher-voltage system needs less current, and less current means thinner wires can carry it, less heat gets generated in the controller and motor windings, and there's less voltage sag under load. That's why a 74V or 86V system feels noticeably stronger and more consistent than a 48V system pushing the same wattage: the higher-voltage pack is doing the same job with less electrical stress on every component in the drivetrain.

In practical terms, going up in voltage is one of the most effective ways to add speed to a build without simply adding more amps (and more heat). It's why HPC's higher-performance platforms move away from 48V and into the 52V-86V range as power targets climb.

HPC's battery lineup: 48V through 86V, and custom beyond that

HPC's standard battery systems span the range most riders need:

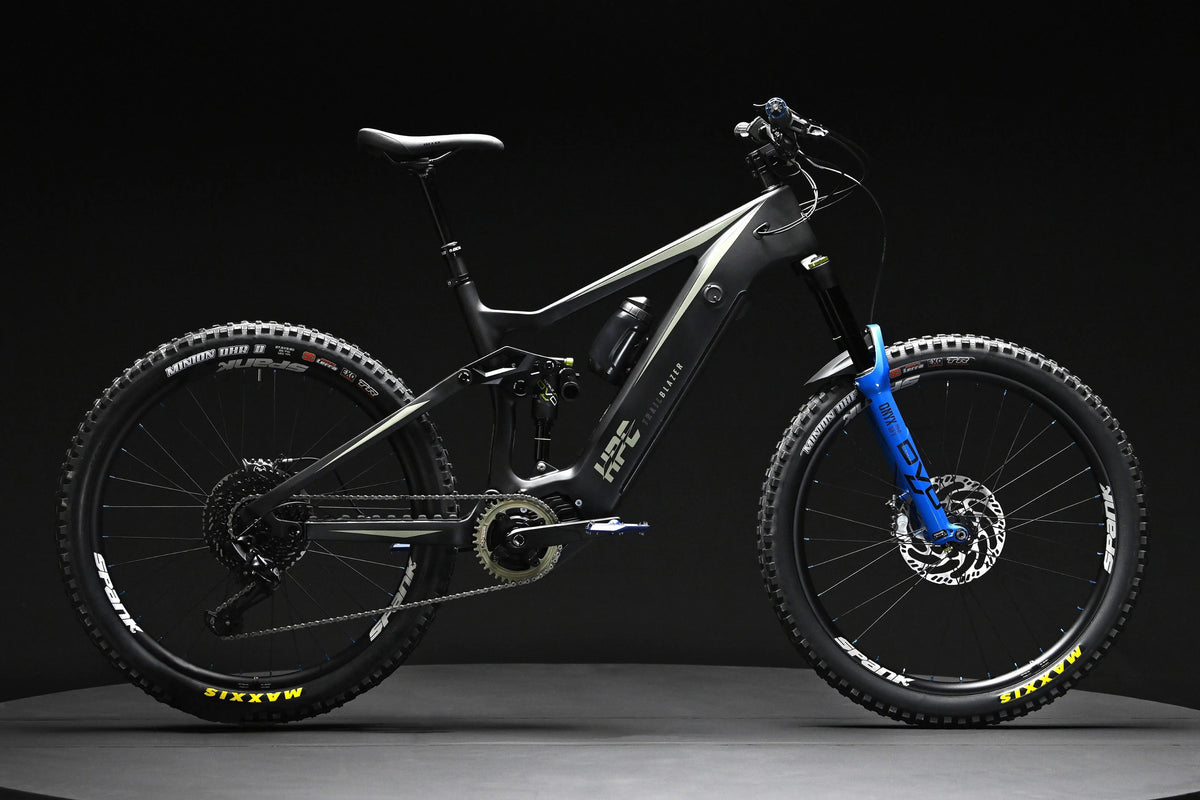

• 48V-52V systems power HPC's entry and mid-tier platforms like the Trailblazer, where efficiency and weight matter as much as raw output.
• 74V systems (20S configuration) are where HPC's high-performance builds live. Our 74V 15Ah ELITE USA-made pack weighs just 11.6 lbs, is engineered to deliver 4,000W+, and is built with ultra-low-impedance cells rated for 5C continuous / 10C burst discharge.
• 86V systems (23S) sit at the top of the standard lineup. Our 86V 15Ah ELITE pack weighs 13.3 lbs and is engineered to deliver 5,000W+, again with the same 5C/10C-rated cells and a BMS good for 60A continuous.

Beyond the standard lineup, HPC custom-builds battery packs from 36V all the way up to 100V for specific builds and customer requests. The relationship holds at every voltage: the higher the voltage, the more speed you can extract for a given amperage, and the less current the rest of the system needs to handle to get there. Most of HPC's current high-performance architecture is optimized around 72V (20S) and 78V (21S), which is the sweet spot where our newest generation of high-power controllers is designed to run.

Capacity, range, and what amp-hours actually tell you

Voltage tells you how much electrical "pressure" the system has to work with. Amp-hours (Ah) tell you how much total energy the pack stores, which is what determines your range. Multiply voltage by amp-hours and you get watt-hours (Wh), the real apples-to-apples number for comparing battery capacity across different systems. A 74V 15Ah pack, for example, stores about 1,110Wh, while the 86V 15Ah pack stores roughly 1,290Wh, even though both packs are rated at the same 15Ah.

Range depends heavily on rider weight, terrain, wind, and how much you're using the throttle versus pedaling, but as a rule of thumb, HPC's 74V and 86V ELITE packs are built to deliver 50-60+ miles in optimal conditions on a lightweight platform with no pedaling at all.

Safety at high voltage

Higher voltage systems demand more from the pack, not less. HPC's ELITE battery systems are fully UN 38.3 certified, the same safety standard used to certify lithium batteries for air and ground shipping, and are hand-assembled in the USA using top-tier cells with a BMS engineered specifically for the current draw of each pack. All ELITE packs carry a full 3-year limited warranty. If you're sourcing a high-voltage pack anywhere other than a manufacturer that specs and tests the BMS for that specific voltage and discharge rate, you're taking on real risk, high-voltage lithium packs are not a place to cut corners.

Which voltage is right for your build?

As a general guide: 48V-52V suits efficient, lighter-weight platforms where all-day range matters most. 74V is the workhorse voltage for HPC's high-performance builds, delivering serious power with a manageable pack weight. 86V is for riders chasing the highest power ceilings HPC's standard lineup offers. And for anything outside that range, from a mild 36V setup to a full 100V race build, HPC's custom battery program can build a pack to match.

Have a specific power target in mind? Browse HPC's battery and charger lineup or reach out to our team to talk through the right voltage for your build.
