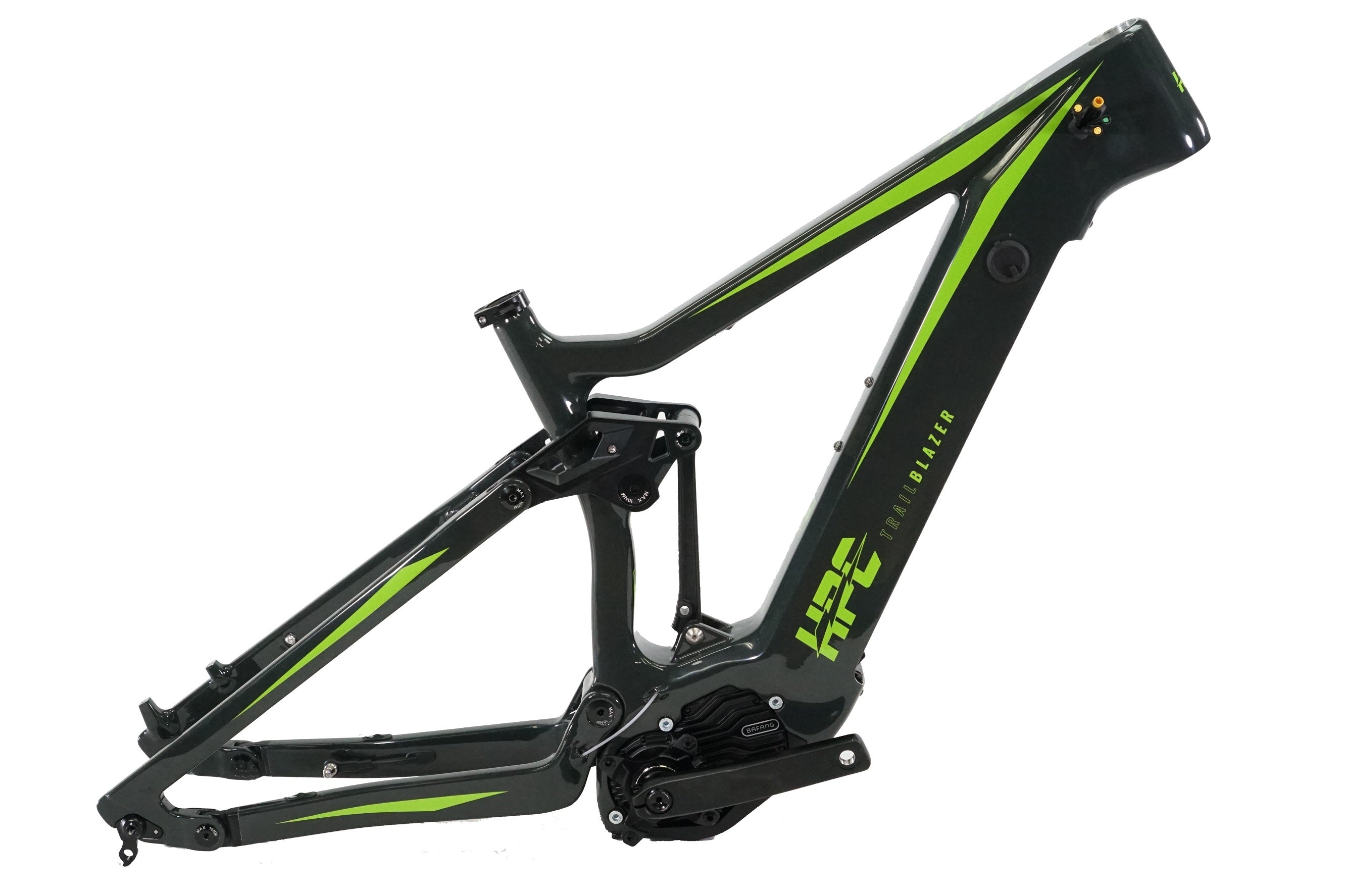

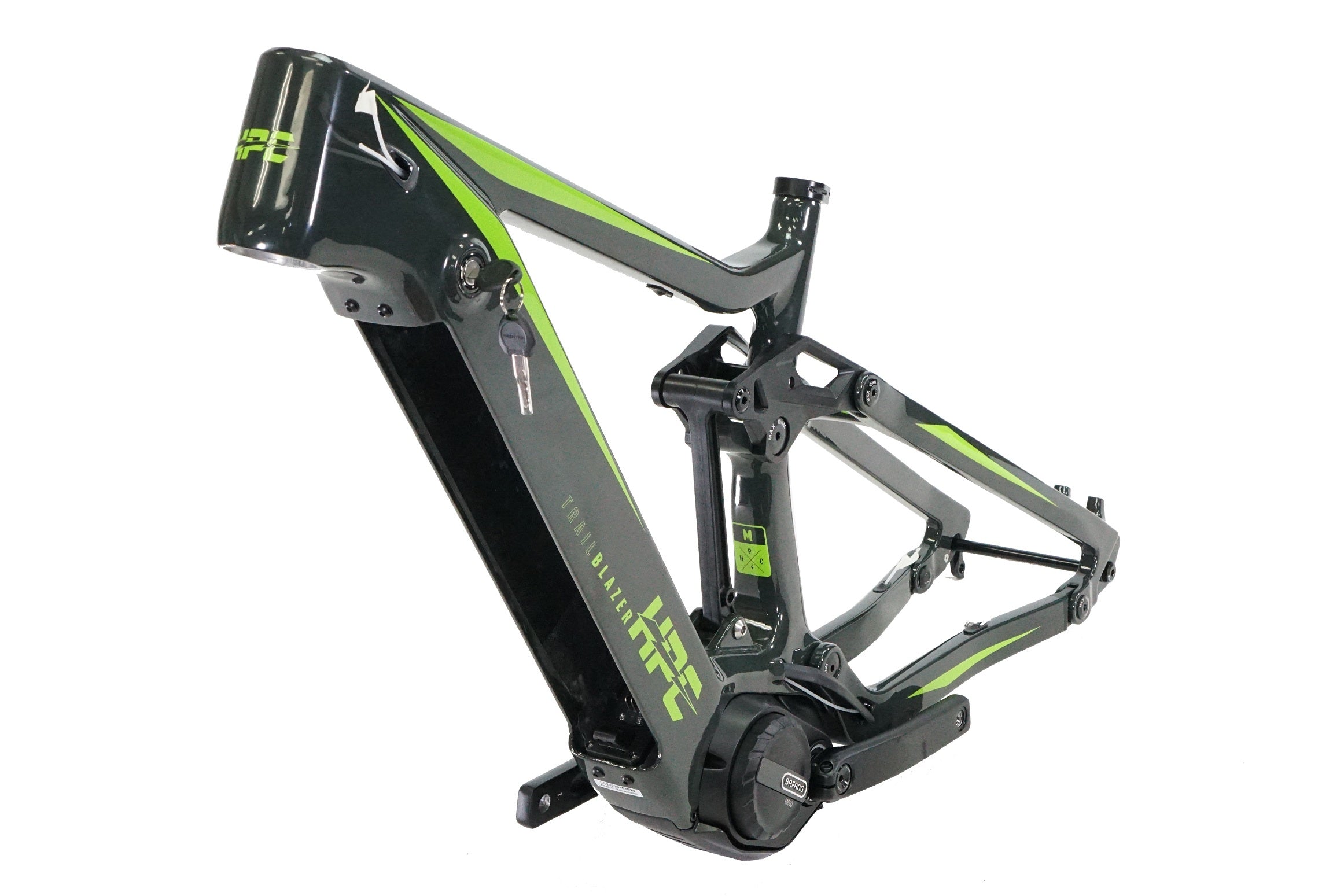

Trailblazer Frame Set (DIY Builder Package)Trailblazer Frame Set (DIY Builder Package)
Trailblazer Frame Set (DIY Builder Package)Trailblazer Frame Set (DIY Builder Package)
Trailblazer Frame Set (DIY Builder Package)Trailblazer Frame Set (DIY Builder Package)
Trailblazer Frame Set (DIY Builder Package)Trailblazer Frame Set (DIY Builder Package)
Trailblazer Frame Set (DIY Builder Package)Trailblazer Frame Set (DIY Builder Package)
Trailblazer Frame Set (DIY Builder Package)Trailblazer Frame Set (DIY Builder Package)
Trailblazer Frame Set (DIY Builder Package)Trailblazer Frame Set (DIY Builder Package)
$2,950.00
$3,800.00

SPRING DISCOUNT, SAVE $850! Start off your next ultimate ebike with the best possible foundation with kinematics made possible by an HPC x DVO collaboration! The new 1800W motor can propel this lightweight monster to 40 mph!

After a year of people asking, we have finally delivered our first frame set to build your own bike! The Trailblazer is the pinnacle of trail and enduro riding performance, and we are stoked to offer this package for all the builders out there to build their dream ebike! For those who have nice parts sitting around, it is time to put them to good use!

We will also be offering in house building services if you want us to install your parts on the frame and have us build it in our warehouse.

Package Includes:

Trailblazer Carbon Frame (Your choice of size/color)

Bafang M600 Motor System (Your choice of power level, 750W/1200W/1800W)

DPC-240 Display

170mm crank arms + hardware

104bcd Spider

Motor bash guard/shroud

Key + Battery Latch Mechanism

All necessary wiring

Headset (FSA zs44/zs56)


Optional Add-On:

Battery System + Charger

Custom Tuned DVO Jade X 185 x 55 Trunion Mount Shock


Specifications:

Rear Dropout- 148mm x 12mm

Frame Travel- 155mm

Rear Shock Spec- Trunion mount, 185mm x 55mm

Fork Spec- 160mm-170mm travel, 44mm offset

Wheel Size- 27.5 x 2.8, 29 x 2.2-2.5

Seatpost- 30.9mm (Full Insertion Length Recommended: M-215mm, L- 240mm, XL-260mm)

Crank arms- 170mm

Battery interface- Reention IR-7U





Parts Required to Finish the Build:

Brake set

Wheelset

Tires / Tubes

Rear Shock (185 x 55 Trunion Mount)

160mm Travel Fork

Handlebars

Stem

Seatpost / Saddle

Derailleur/Shifter

Shifter Housing/Cables

Grips

Chainring (104bcd, 32T, 34T, 36T, 38T))

Chain

Pedals
