FASTEST E-MTB Ever
2026 Revolution MX
Learn About the Revolution MX

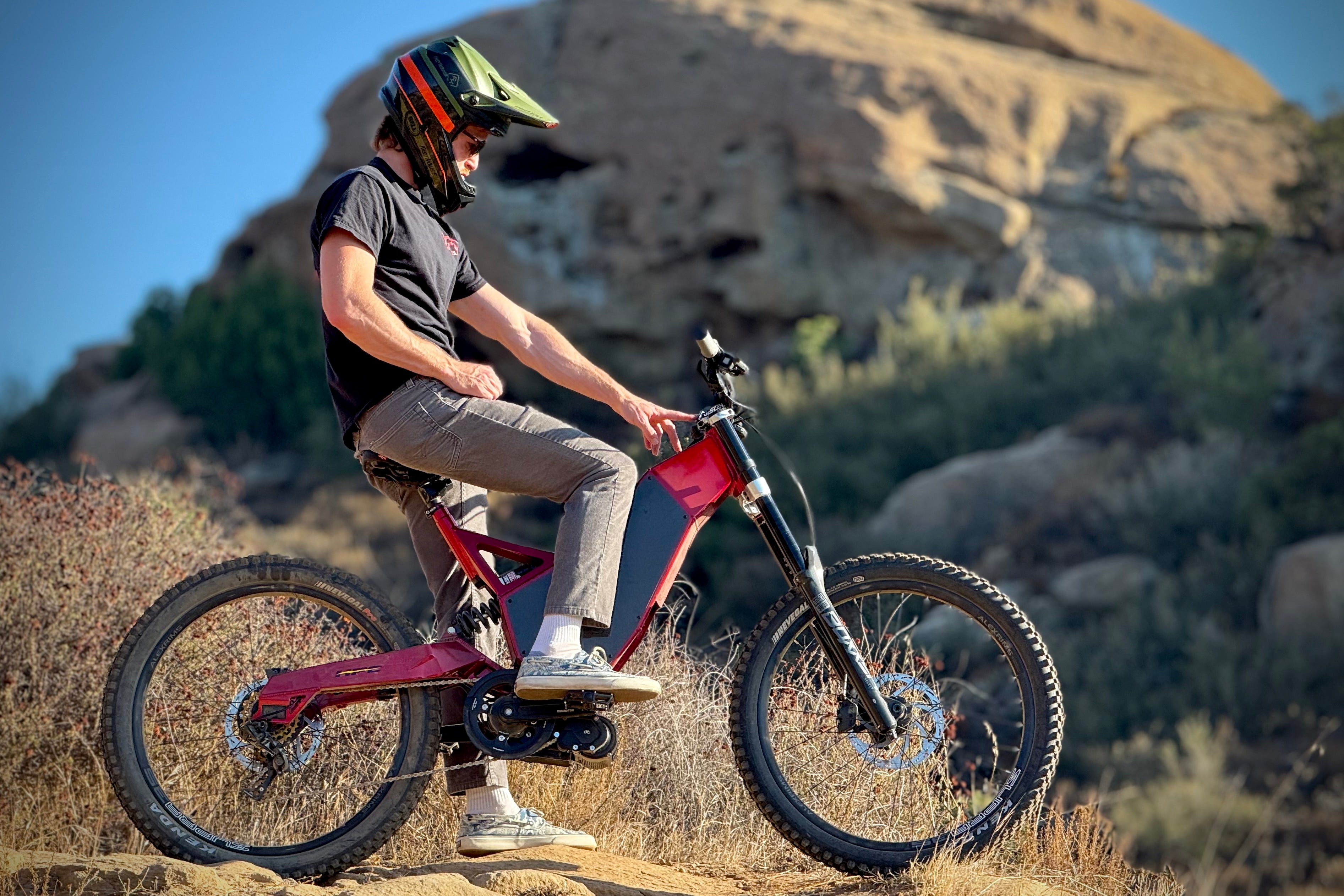

The Revolution MX is our newest and most capable Revolution ever! The MX is all about blending lightweight e-bike performance with moto like power, something never done before!
No expenses were spared to create this one of a kind, top of the line performance king! Exotic building materials such as 6061 aluminum, 7075 aluminum, carbon fiber are all beautifully manufactured and machined to our exact specifications and then welded right here in California.

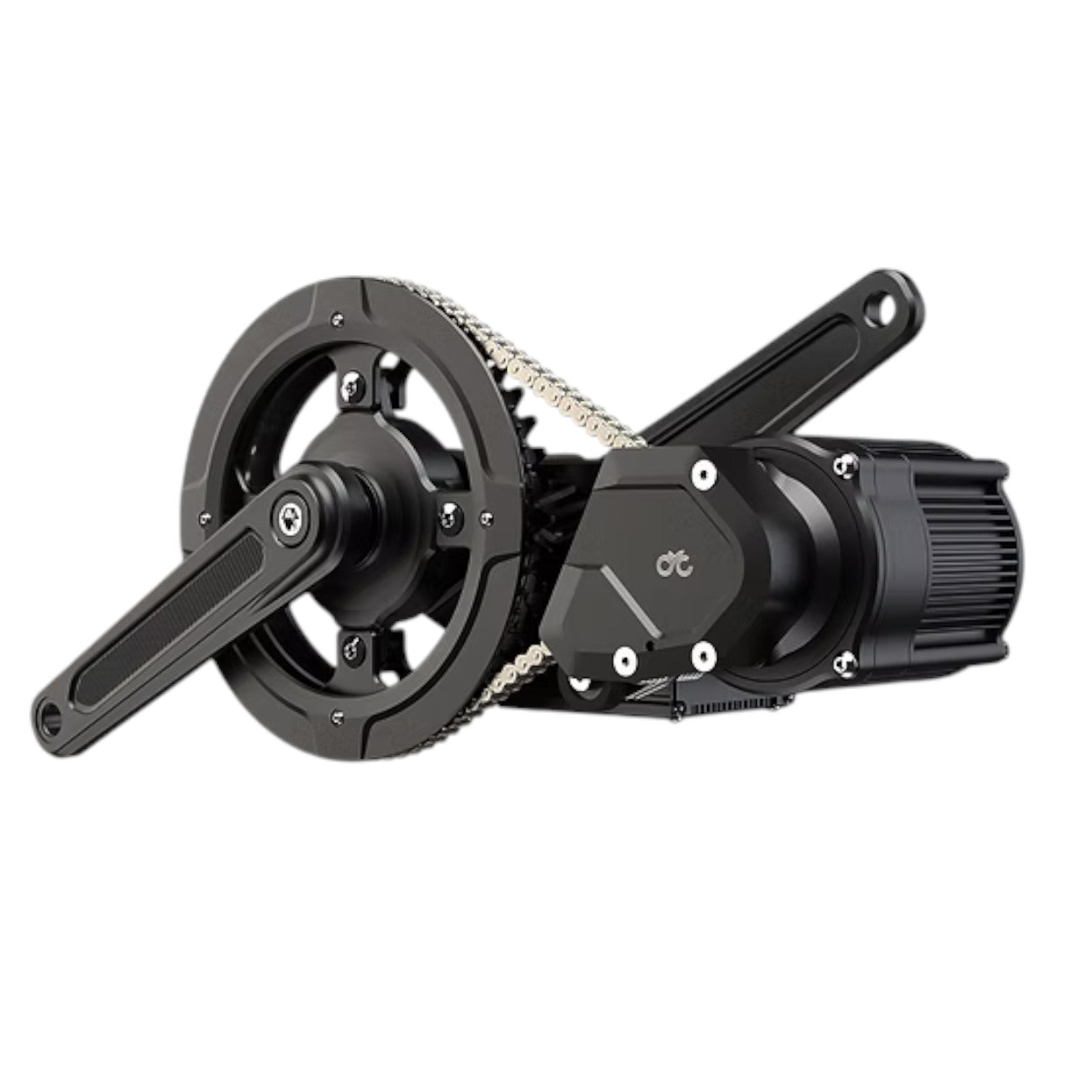

At the center of the Revolution MX is the CYC Pro Gen 4 motor system, capable of pushing 6000W. With our custom 5 speed transmission, you'll be able to have both insane climbing prowess and high stop speeds, in one package.
The incredible amount of acceleration and speed meant sourcing the some of the best performing brakes we can find; the Magura MT5 quad piston performance brakes, mated to the 203mm MDR-C rotors. This bike stops better than anything we have ever tested! To safely operate this performance bike, we have taken considerable time to dial in the suspension, needless to say, it is like floating on a cloud!
The Revolution MX offers up massive power with 6,000W and 72V battery system It can reach speeds of 50+ mph!
We have paired the Revolution MX with a completely custom drivetrain, capable of reliably handling all this power. A custom rear hub, custom 5 speed cassette, a high performance chain for high power, and custom derailleur system with integrated clutch make this perform as well as it look!
Unlike other bikes on the market in this category, the Revolution MX has 5 speeds, giving the motor extra torque and extra speed. You'll always find the right gear for the trail!
*Off road mode must be enabled on private property, Bike will ship fully compliant with Class 2 laws (750W/20 mph)
Technical Specifications
E-Bike
Motor
CYC Pro Gen 4, 6000W
Battery
USA Made, 72V (40 mile, 75mile, 100mile)
Display
Smart, intelligent display w/ 2 riding modes
Charger
84V 2A/4A/6A, 3 Pin XLR, 100-240V
Custom Programmed Satiator Intelligent, Digital Charger (optional)
Wiring Harness
Custom HPC wiring harness
Frameset
Frame
HPC Revolution Frame, 26" wheels, full internal cable routing, 157mm spacing, 9.5" travel,
Seat Binder
Alloy, 34.9 mm
Stem
FSA Orbit 1.5 ZS Internal Headset, sealed bearings
Suspension
Rear Shock
Rock Shox Vivid R2C, 9.5x3.0
Fork
Manitou Dorado, 27.5, 200mm Travel
Brakes
Front Brake
Magura MT5e Quad Piston, metallic pads, 203mm rotor
Rear Brake
Magura MT5e Quad Piston, metallic pads, 203mm rotor
Drivetrain
Shift Lever
Rear Derailleur
Sram GX DH,5-speed, Medium Cage Derailleur
Cassette
Custom 5 speed cassette, 15-30T
Chain
KMC E11 EPT
Crankset
CYC 165mm crank arms
Chainring
Custom 36T chainring
Wheels & Tires
Rims
Alex Supra 35 / 26", hookless alloy, 35mm /30mm inner width, tubeless ready
Front Hub
HPC alloy, sealed cartridge bearings, 20x110mm thru-axle, 32h
Rear Hub
HPC alloy, sealed cartridge bearings, custom steel driver, 12x148mm thru-axle, 32h
Spokes
Phil Wood 12g rear / 14g front, cold rolled/cut in house, black
Front Tire
Kenda Nevegal Pro, 26x2.7
Rear Tire
Kenda Nevegal Pro, 26x2.7
Inner Tubes
Double thick, Presta Valve
Cockpit
Stem
SRAM Descendant, direct mount, 40mm length, 31.8mm bar bore
Handlebars
SRAM Descendant 6061 mtn bars, 35mm diameter, 800mm width.
Grips
Lekkie Pacemaker throttle/grips
Saddle
WTB Volt, Cr-mo rails
SeatPost
30.9mm, aluminum, black
Top Speed (Standard gearing, 72V):
6000W- 50 mph
Range:
Standard -40 Miles
Upgraded - 75 Miles
Long Range- 100Miles
Proudly American: Every aspect of the Revolution, from the initial development, the engineering, the welding, the heat treating, the powder coating, the assembly, and the testing are all done here in the USA. No other ebike company that we know of can claim that!
Electric Technology: The 6000W power system is not only light weight, but offers incredible torque and a torque sensing pedal assist system. 2 distinct power modes (street and race) gives you the ability to choose how you want to ride.
USA Built Battery: Proudly build in the USA battery features unmatched quality, performance, and safety
Premium suspension: Up to 9.5" of rear travel and 200mm front travel allows precise control and buttery smooth performance on the roughest terrain.
Unrivaled Stopping Power: Quad piston Magura MT5e with 203mm rotors give you maximum control and heat dissipation.
Incredible Grip: The custom Kenda Nevegal Pro 26 x 2.7" tires feature super sticky tread compound so you have traction in nearly any condition
Torque Sensing PAS: The intuitive torque sensor + cadence sensor constantly monitors rider input to deliver an unparalleled ride
No range anxiety: Capable of up to 100 miles of range with the optional 2400wh battery system
High Quality Components: No aspects of the Revolution MX are looked over and features the high quality components throughout.
Class Leading Warranty: With a 3 year limited warranty on the whole electric system + 5 years on the frame, rest assured we have your
back
120 Point Inspection: An industry-leading quality assurance inspection ensures your bike will not only be built correctly but will also perform as it should
Motor:
CYC Gen 4 Pro | 6000W+ Power
Range:
Up to 100 miles (optional 2400wh)*
Maximum
Performance:
285ft-lb Torque | 6300W Peak Power
50 MPH top speed
Suspension:
9.5" Frame Travel, Rock Shox Vivid RC" 9.5 x 3", 200mm Manitou Dorado
Load
Capacity:
350lb
(with upgraded 650lb rear spring)
Frame:
6061
Aluminum | Carbon Fiber w/ 9.5" Travel
Display:
Intelligent LCD Display w/ PAS Control
Class:
Class 1 | 2 |3 |Unlimited
Battery:
USA Made 72V| Up to 2400wh
Throttle:
Lekki Pacemaker, full twist
Weight
70lb-82.6lb, option dependent

Trailblazer Warranty:
3 Year
(limited): Motor, Controller, Throttle, Battery, Charger, Display
Frame: 10 Year (limited)
Components:
Follows original manufacture warranty
For further details, please look at the HPC Terms and Conditions
USA Craftsmanship and Performance
The Ultimate MX E-bike

Unrivaled Power to Weight
Thanks to an ultra-light and incredibly powerful motor system, the Revolution MX weight starts at 70lbs

Superior Quality
The Revolution is built from the ground up using the most exotic materials and CNC workmanship. There is not one off the shelf component. It is a rolling piece of art!

More Range, More Reliable
Tired of cutting your ride short? With up to 2400wh of battery juice, you can get 100+ miles of range. Every battery is proudly built in the USA!

Downhill Capable Suspension
With 200m of travel up front and a mind boggling 9.5" in the rear, the Revolution feels like you are riding on a cloud!

Class 2 Compliant | Off-Road Mode
Easily go from full class 2 compliance (20mph/750W) to full power off-road mode with the flick of switch.

Unrivaled Power to Weight
Thanks to an ultra-light and incredibly powerful motor system, the Revolution MX weight starts at 70lbs

Superior Quality
The Revolution is built from the ground up using the most exotic materials and CNC workmanship. There is not one off the shelf component. It is a rolling piece of art!

More Range, More Reliable
Tired of cutting your ride short? With up to 2400wh of battery juice, you can get 100+ miles of range. Every battery is proudly built in the USA!

Downhill Capable Suspension
With 200m of travel up front and a mind boggling 9.5" in the rear, the Revolution feels like you are riding on a cloud!

Class 2 Compliant | Off-Road Mode
Easily go from full class 2 compliance (20mph/750W) to full power off-road mode with the flick of switch.

Lightweight Rocketship
The Future of Performance
With top of the line components matched with cutting edge electric system, there isn't a better performing e-bike out there! Best of all it is built to your exact specifications here in the USA!
A New Standard Of Performance

Blistering 50 MPH Top Speed
With its powerful 6000W 72V motor system, the Revolution MX can accelerate up to 50mph

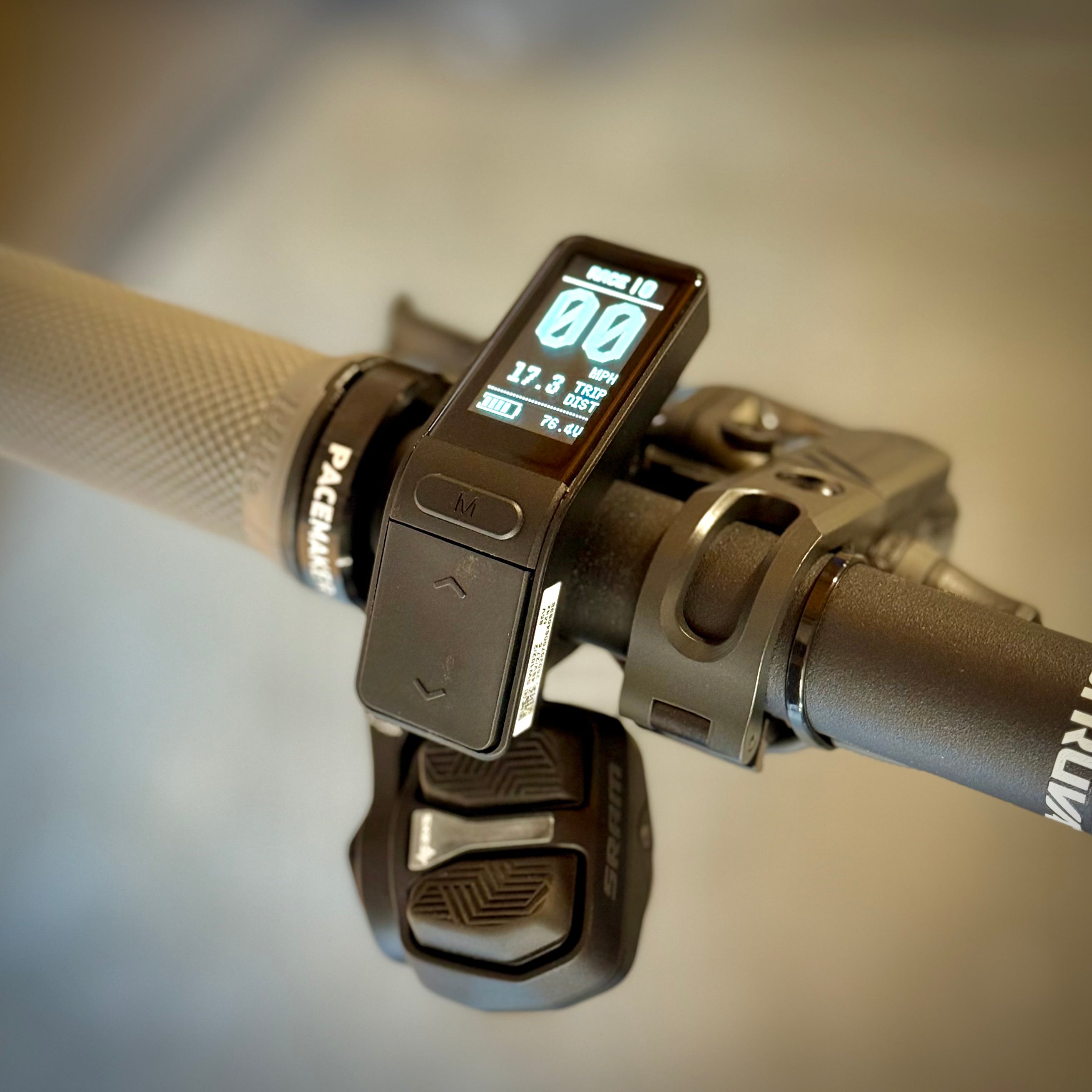

Intelligent LCD Display
The intelligent display shows everything you want to know at your fingertips! You can change your assist levels and view ride info

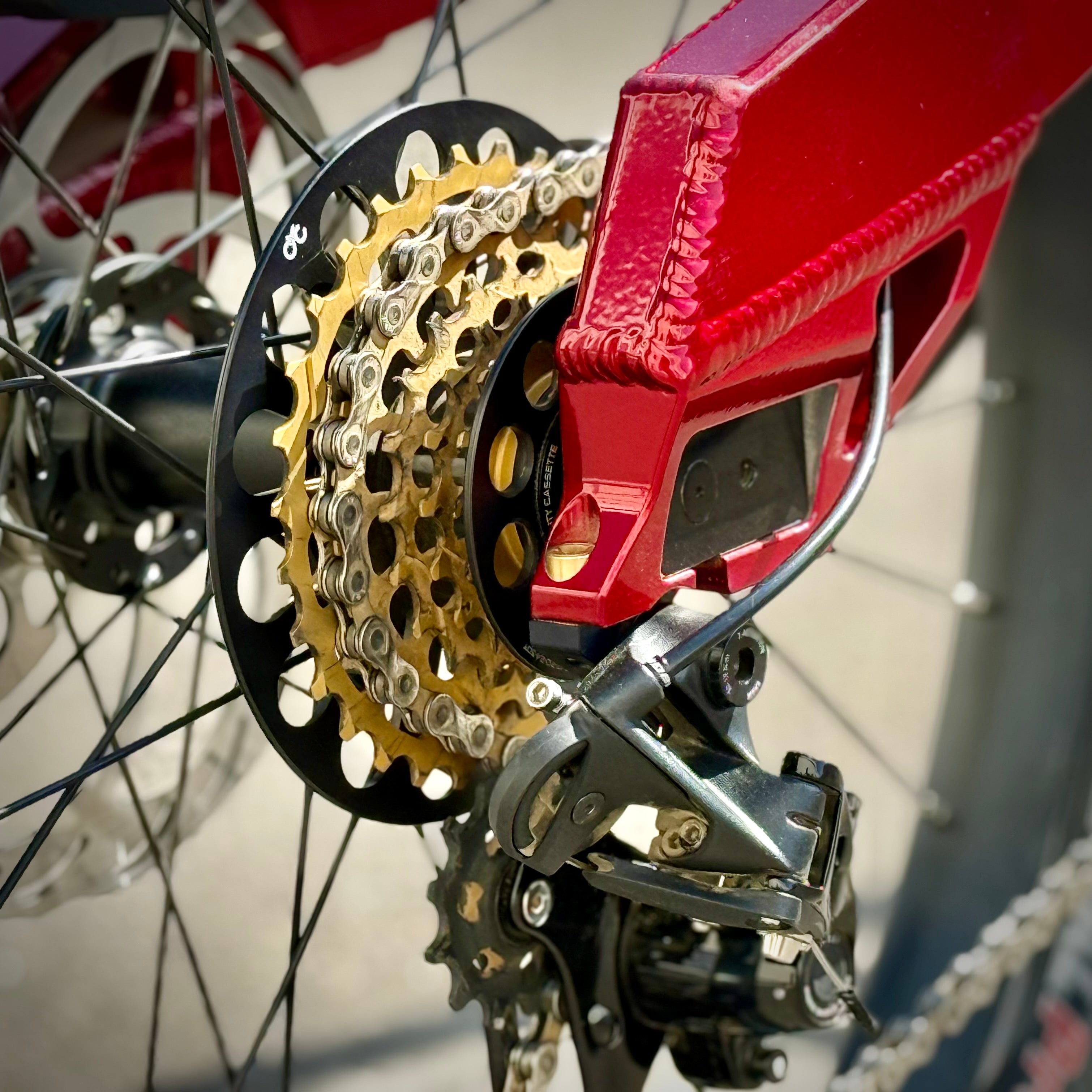

5 Speed Transmission
With 100% gear spread, get more torque, better efficiency, and better control without sacrificing top speed

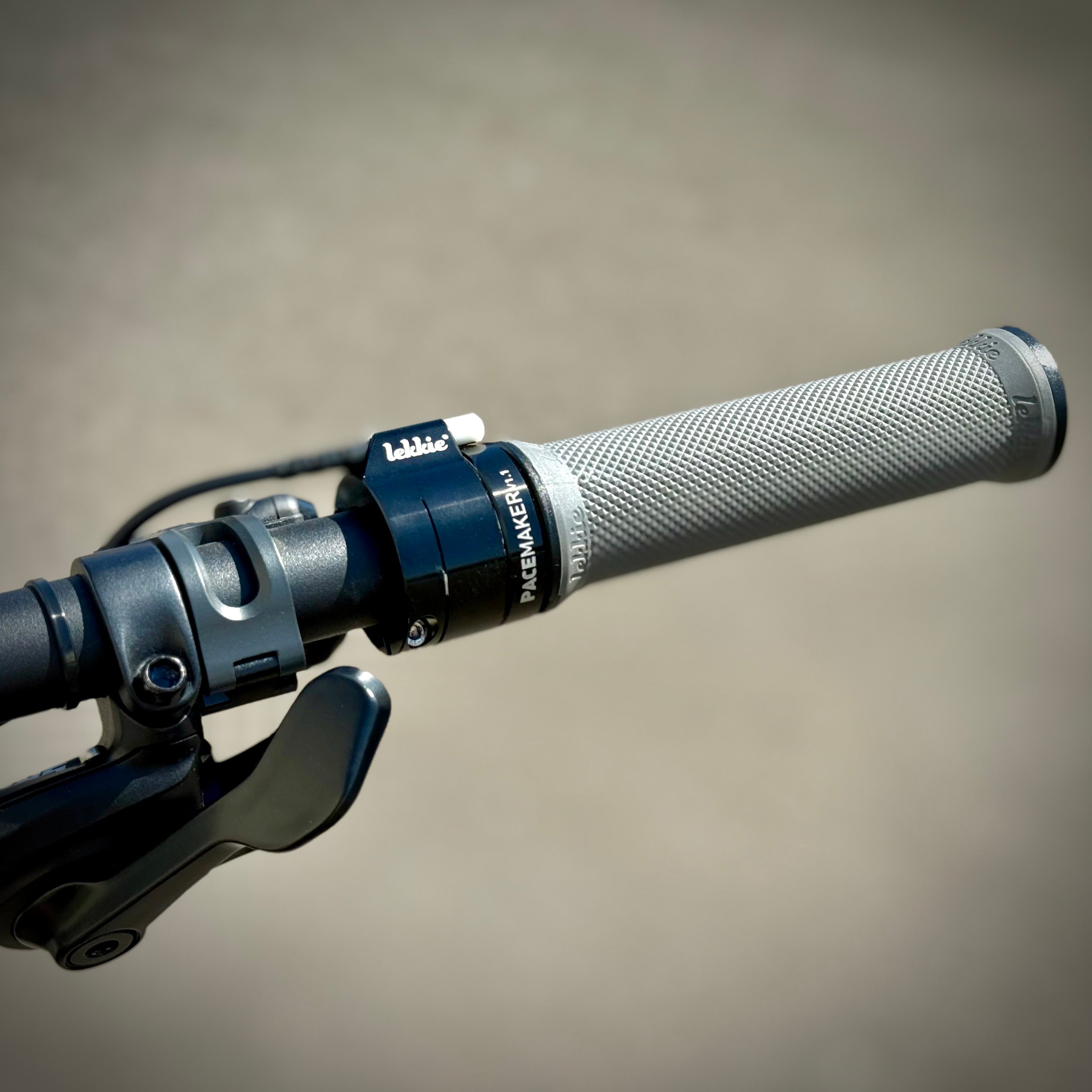

Full Twist Throttle
Stay in complete control on your rides thanks to thanks to the Lekkie Pacemaker full twist throttle

Blistering 50 MPH Top Speed
With its powerful 6000W 72V motor system, the Revolution MX can accelerate up to 50mph

Intelligent LCD Display
The intelligent display shows everything you want to know at your fingertips! You can change your assist levels and view ride info

5 Speed Transmission
With 100% gear spread, get more torque, better efficiency, and better control without sacrificing top speed

Full Twist Throttle
Stay in complete control on your rides thanks to thanks to the Lekkie Pacemaker full twist throttle
Climb Anything
Thanks to its 5 speed transmission, the Revolution MX can climb anything. FAST!
One Bike That Can Do It All
Jack Of All Trades
The Revolution is the answer to your dream wish list for the ultimate dynamic, capable, do-it-all e-bike! With ample power and massive range, it is at home on from exploring off-road to the urban jungle. Set up the Revolution how you want it!
